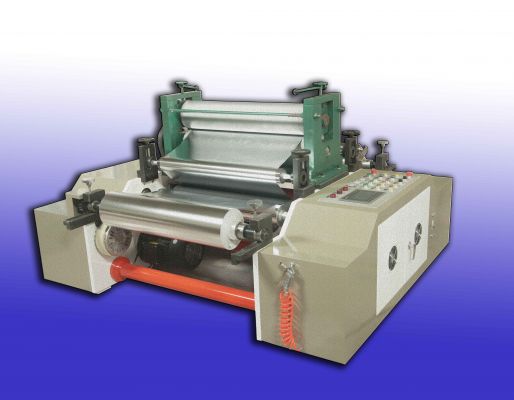

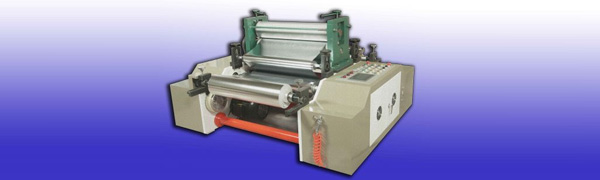

Use: This applies to: embossed aluminum foil, paper, plastic film and other roll materials
Basic functions: Control system set on the body, a high degree of automation, flexible operation
　　　　　　* Using a self-winding roller weight
　　　　　　* Rewinding shaft using unloading
　　　　　　* Unwinding unloaded air shaft

Main technical parameters：

Unwinding maximum diameter：	￠ 600mm
Winding diameter：	￠ 600mm
Main Transmission：	Two motor system
Master mode：	PLC + HMI
Tension Control：	Automatically adjust taper
Mechanical speed：	0-250m/min
Embossed speed：	0-200m/min
	Locking discharge
	Rewind locking
Total Power：	About 9KW (three-phase five-wire system)
Total Weight：	About 1000KG
Dimensions：	2000mm (length) X1800mm (W) X1200mm (high)
