Application

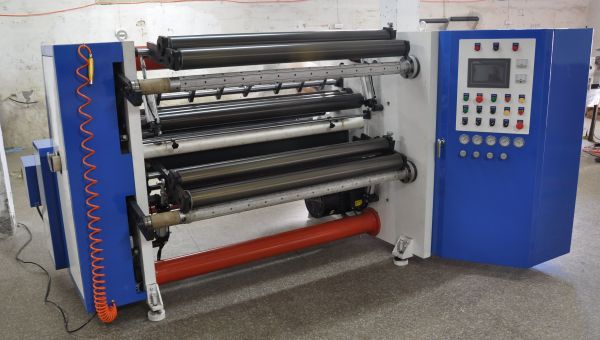

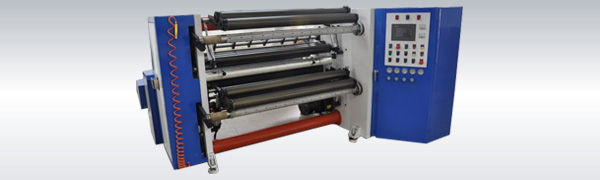

As an economic general-purpose speedy slitting machine,it is used for slitting reeled materials like film,paper and Al-foil.The whole machine with high equipped components,fast speed,smooth rewinding and high automation

Main technical parameters：

Material Width：	700mm-1300mm
Slitting Width：	50mm-1300mm
Slitting Speed：	300m/min
Max. Unwind diamete：	￠600mm
Max. Unwind diameter：	2×￠400mm
Unwind Shaft：	Air Shaft
Rewind Shaft：	Differential Slip Shaft
Paper Core Dimension：	￠3″
Main Control：	PLC System + Man-Computer Interface
Tension control Type：	Taper Control Auto.
Driving Mode：	Vector Frequency Change
Web Guiding System：	LPC (Line Position Correction) (Line Position Correction)
Slitting Mode：	Straight Cutting Knife （A、Fixed Type B、Alterable Type） Circular Cutting Knife (A、Fixed Type B、Alterable Type)
Working Power Supply：	3 Phases /AC/ 380V/ 50HZ
Overall Machine Weight：	3.5T
