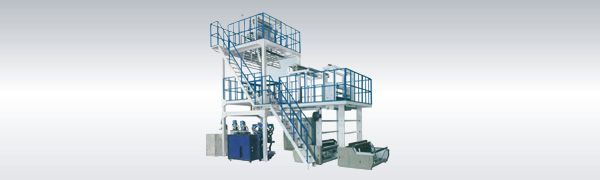

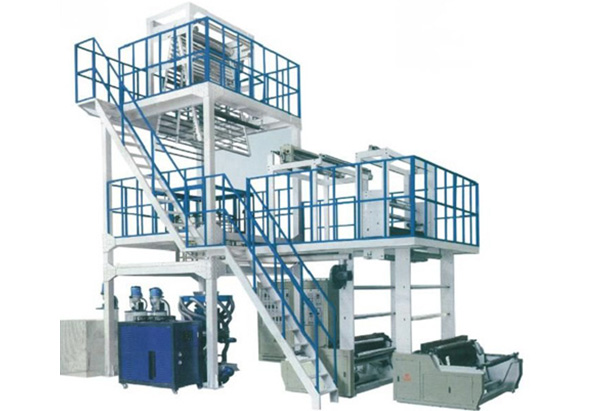

Name:Three to Five Layers Coextrusion Film Blowing Machine Set(IBC film tube inner cooling type)

Performance and Characteristics:
This machine set is to satisfy the customer’s requirements of high quality,high output film blowing equipment.It adopts the extruder with force feeding function,precision type ceramic heater,precision type double vents air ring,horizontal type rotary traction system, fully automatic surface friction type double cut double winders,computer concentrate control system etc advanced technique and equipments.Compare with kindred equiment,it has the advantages such as more compact structure,higher output, better produce quality,less energy consume,easier operation.It can be widely used into various kind of high transparence packing film manufacture,and create the considerable economic benefit for you.
Main technical parameters：

Model：	SJ-FM1300, SJ-FM1500, SJ-FM1800
Max.Folding Width of Film：	1200mm, 1400mm, 1700mm
Number of Film Layers：	3 layers
Film Thickness：	0.02-0.12 mm
Max.Output：	200kg/h, 250kg/h, 300kg/h
Material：	LLDPE LDPE EVA
Screw Diameter：	Φ45/Φ55/Φ45mm, Φ50/Φ60/Φ50, Φ60/Φ70/Φ60
Screw L/D Ratio：	30:1 L/D
Max.Rotate Speed of Screw：	100r/min
Main Motor Power：	18.5/30/18.5kw, 22/37/22kw, 30/45/30kw
Die-head Structure：	IBC Film Tube Inner Cooling System
Air Ring Structure Form：	Double Vents Air Ring
Rotary Traction System Form：	Horizontal±360°
Traction Speed：	45-120m/min
Total Power：	150kw, 280kw, 280kw
Overall Dimension：	Acording to actual machine
