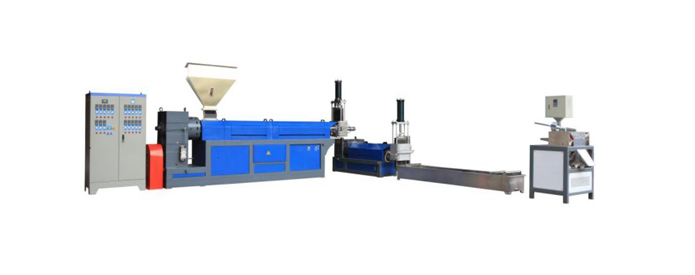

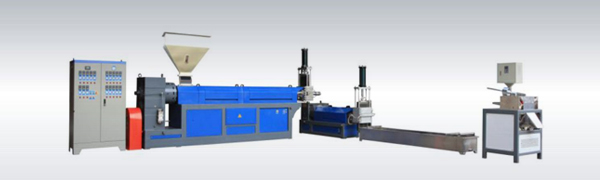

Plastic recycle extruder machine
Model:SH-140/140-P
A. First Extruder:
Screw Diameter:
|
Φ140mm
|
Screw Length:
|
3600mm
|
L/D ratio:
|
25:1
|
Vented style:
|
Single(Double) Vent
|
Material of Screw and barrel:
|
High-quality nitride steel 38CrMoAlA. Nitride hardness is HV800-900. Nitriding Depth is 0.4-0.7mm
|
Gear Box:
|
315#(Equipped with cooling device)
|
Motor Power:
|
75kw-4 / 55kw-6
|
Mode of Motor control:
|
star triangle step - down start
|
Heating Zones/Power:
|
10 zones/60kw
|
Mode of heater ring:
|
before first vent is ceramics heater ring
|
Screen Change Style:
|
Hydraulic Double Screen Change (Screen Size:300mm×300mm)
|
Feed port:
|
45# Steel alloy processing
|
B. The Second Extruder
Screw Diameter:
|
Φ140mm-A Model
|
Screw Length:
|
1800mm
|
L/D ratio:
|
12:1
|
Vented style:
|
Single Vent
|
Gear Box:
|
200#(Equipped with cooling device)
|
Motor Power:
|
18.5kw-4
|
Heating Zones/Power:
|
5 zones/30kw
|
Mode of heater ring:
|
ordinary heater ring
|
Screen Change Style:
|
Hydraulic Double Screen Change (Screen Size:300mm×300mm)
|
C. Ancillary equipment
Cooling device:
|
3.0m stainless steel cooling tank
|
Cutter device:
|
5.5kw inverter(ALPHA brand) 24 knives cutter
|
Hydraulically actuated system:
|
Double valve hydraulic station,power is 3.75kw
|
Material inlet:
|
800*800 high material inlet:
|
Electric Panel:
|
Single electric panel(15 heating zones, No.1 Stage is 10 Zones,No.2 Stage is 5 Zones), Digital temperature control meter adopt Yuyao, AC Contactor adopt Zhengtai, (3-PHASE, 50mm^2 Copper Core, 400A air break by customer)
|
Total power:
|
195kw
|
Tool Box:
|
Tool Box one set, heater ring 4pcs and heater panel 6pcs.
|
Suitable material(flake):
|
ABS/PS/PP/PE etc
|
Capacity:
|
ABS/PS:300-350kg/h;PE/PP:250-300kg/h
|
