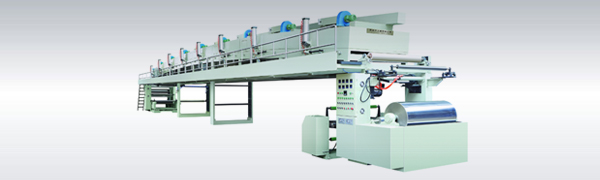

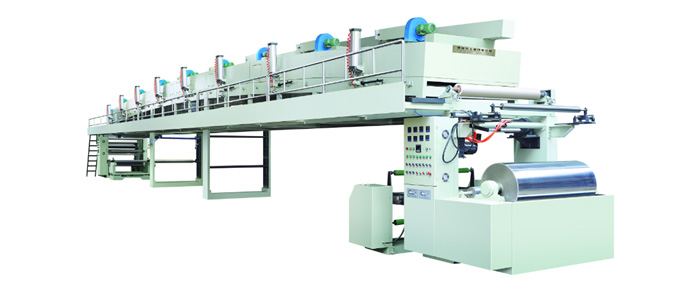

BOPP coating machine
| the coating width： | 1100mm |
| the roller surface width： | 1230mm |
| Max Film Width： | 550mm |
| mechanical speed： | 130m / min (production speed with the coating thickness about) |
| unwinding diameter： | Φ1100mm |
| winding diameter： | Φ800mm |
| Heating： | Electric heating |
| the temperature control： | room temperature -150 ℃ ± 2 ℃ |
| winding edge uniformity： | ± 0.5mm |
| installed power： | about 180kw |
| the device dimensions： | 26500mm × 3400mm × 4200mm |
