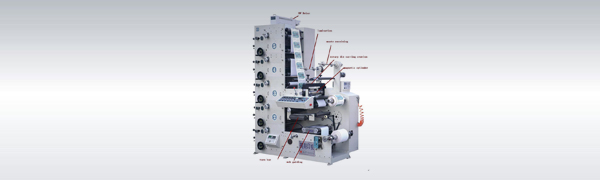

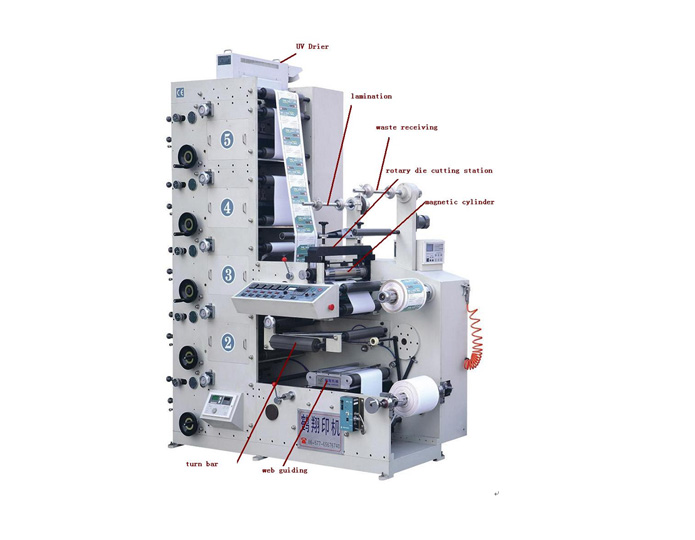

Station for 4-color flexo printing machine:
1.One mounting machine
2.One anilox roller for each group (lpi is optional, made in shanghai)
3.Three sets printing rollers (3*4=12)
4.Printing both sides at the same time (with turn bar)
5.With the lamination station
6.One unwinding tension controller (Mitsubishi Japan)
7.One rewinding tension controller
8.One rotary die cutting station
Main technical parameter:
Model:
|
RY480-4B
|
Speed:
|
60m/min
|
Printing color:
|
4colors
|
Max. Web width:
|
480mm
|
Max. Printing width:
|
460mm
|
Max. Unwinding diameter:
|
800mm
|
Max. Rewinding diameter:
|
750mm
|
Printing girth:
|
175-580mm
|
Precision of registration:
|
±0.10mm
|
Dimensions:
|
2100*1300*2500(mm)
|
Machine weight:
|
About 2600kg
|
