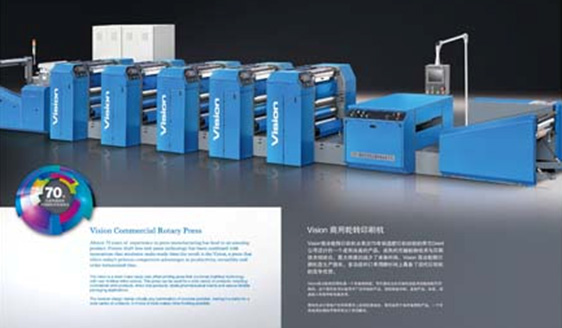

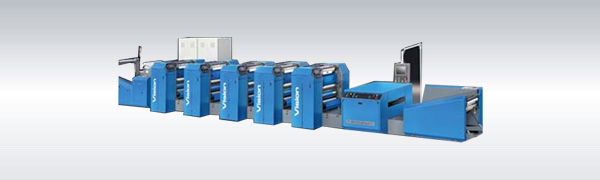

The vision is a short-make-ready web offset printing press that combines shaftless technology with near linmitless inline options. This press can be used for a wide variety of products, including commercial print products, direct mail products, labels,pharmaceutical inserts and various flexible packaging applications.

The modular design makes virtually any combination of modules possible, making it suitable for a wide variety of products. A choice of tools makes inline finishing possible.

The unequaled solution for:
　　Commercial printing
　　Direct mail
　　(wrap around) labels
　　Security printing
　　Lottery tickets
　　Pharmaceutical inserts
　　Busimess forms
　　-Paper Roll
　　-unit sets cut sheet laser forms

　　Additional units
　　Die-cutter
　　Rewinder
　　Blanket washing system
　　Romote ink control
　　Register control
　　Web video system
　　UV curing system
　　Flexo unit
　　Screen printing unit
　　Rotogravure unit
　　Hot foil stamping unit
　　Laminating unit
　　Numbering unit
　　Cooling units with uv curing
　　Hot air drayer for water based or solvent based inks
　　Non-stop splicers
　　Corona unit

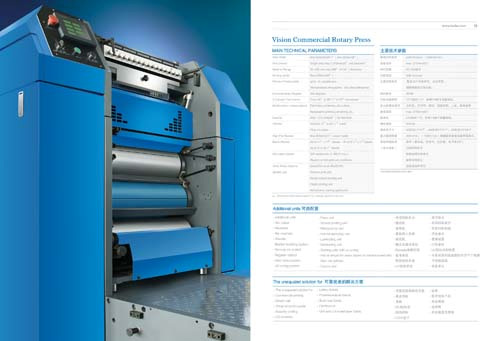

Technical detail	Vision
Web width：	Max 520mm(20 ½”), min.200mm(8”)
Roll unwind：	Single web,max.1,270mm(50”)roll diameter”
Material range：	20-350 microns(.008”-0.14”) thickness
Printing width：	Max.508mm(20”)
Primary printing units：	up to 12, variable size
	Wet/waterless lithographic
	Dry offset,letterpress
Circumferential register ：	360 degrees
3 cylinder print inserts：	From 16” to 28-1/3”in1/6”increments
Multifunction module options：	File holes,numbering ,die cutting ,flexographic printing,varnishing ,etc.
Rewind ：	Max.1,270 mm(50”) roll diameter
Sheeter：	Variable, 4” to 28-1/3”cutoff
	Chip cut option
High pile stacker：	Max.800mm(31”) stack height
Batch stacker：	A3 or 11”*17” sheets A4 or 8½”×11”sheets A5 or 5½ ×8½”sheets
Max.rated speed：	300 meters/min.,(1,000 ft./min.) Rewind or fold,optimum conditions
Other press options：	Dryer(UV,hot air,IR,EB,HF)
(partial list)：	Gravure print unit Rotary screen printing unit Digital printing unit Adhesive or coating applicators

ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
