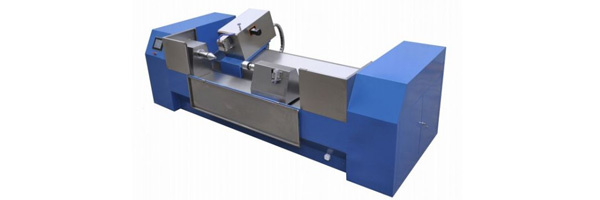

Gravure Cylinder Chrome Polishing Machine
GP-350 X 1400Chrome polishing machine is designed for polishing process on
Main technical parameters：
| Cylinder Diameter： | Φ90-350mm |
| Cylinder Length： | 300-1400mm |
| Cylinder rotation speed： | 60-300rpm |
| Polishing head to-and-fro-speed： | 500-800mm/min |
| Polishing head forward speed： | 380-410mm/min |
| Main shaft rotation speed： | 25-75rpm |
| Polishing head oscillation frequency： | 10-35hz |
| Tailstock movement speed： | 1200-1300mm/min |
| Dimension(L x W x H)： | 3600 x 1600 x 1200mm |
| Power Supply： | 4.5kw |
| Weight： | 2600kg |
| Customer Responsibility： | 380/440VAC,3 Phase; Air compressor |
