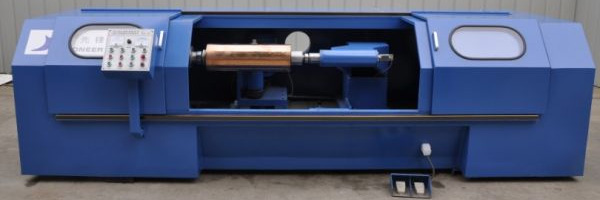

WPG-350×1400 Polishing machine is designed for mirror polishing on copper layer of the gravure cylinder with high efficiency, precision, easy operation .The brightness will be enhanced 10 times which will satisfy the high requirement of engraving.

Main technical parameters：

Cylinder length：	400-1400mm
Cylinder diameter：	Φ85-Φ350mm
Cylinder rotation speed：	100-400rpm
Fabric wheel diameter：	400mm
Fabric wheel rotation speed：	2900rpm
Fabric wheel moving speed：	520-800mm/min
Power Supply：	7.9 KW
Dimension：	3650×1600×1230mm
Weight：	2800 kg
Customer Responsibility：	380V AC, 3 phase
